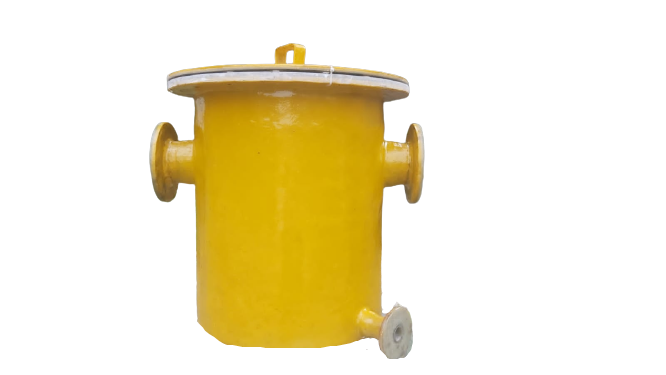

FRP Strainers:-
| Material | FRP/GRP/PP FRP/PVC FRP |
| Shape | T |
| Media | Water |
| Model Name/Number | HFT-COMPOPLAST/STRAINER/T/001 |
| Size/Dimension | 800 NB |
| Color | GREY |
| Automation Grade | Semi-Automatic |
| End Connection | Flange End |
| Diameter | 300 up to 1400 |
| Material Grade | ISOPHTHALIC / VENYLESTER / DERAKENE |
| Mounting | Leg |
| Packaging Type | Standard |
| Bolts & Nuts | MS / GI / SS |
| Connection Standard | Flange End |
| Cover Gasket | Natural Rubber / EPDM / Neoprene |
| Inner Diameter | 300 NB up to 1400 NB |
| Brand | COMPOPLAST |
| I Deal In | New Only |
HFT – COMPOPLAST Tee Strainers can be equipped with Bolted Covers, Hinged Covers, Clamped Covers, a Davit Lifting Device or other Lifting Device to make removal of large heavy covers safe and efficient. Widespread list of options are available.
Tee FRP Strainer feature top removal of the screen. The screen is in the form of a basket, with a lifting handle, so that all particulate captured and retained by the screen can be easily removed for disposal. They are intended for applications where large amounts of solids particulate are expected and where the clean-out will be frequent. For easily flushable solids, a modified cone bottom basket can be tilted with manual blow-down through drain port.
Thermoplastic-lined construction for unmatched structural strength, making it ideal for the toughest applications in general service, chemical, or industrial.
- Thermoplastic Liner in PVC, CPVC, PP or PVDF and fiberglass over-wrap for structural integrity.
- All inlets and outlets are constructed of the same material as the wetted areas. Ends are standard flanged ends with 150 lb. ANSI drilling.
- Bolted Blind Flange Covers are provided when maximum pressure rating is required. Easier off lid hardware is available if lesser pressure ratings are permitted.
